Spare Caliper Parts/Accessories
CP9668 / CP9669 6-Piston front
| CALIPER | CP9668 / CP9669 | ||||
| REFERENCE | ESSEX SKU (LINKS BELOW) | AP RACING PART NUMBER | DESCRIPTION | QTY PER CALIPER | NOTE |
| 1 | 9669 Piston - 25.4mm / 1.0" | 2 | 9669 only | ||
| 1 | 13.05.31004 | CP9665-114 | 9668 or 9669 Piston - 27mm / 1.06" | 2 | |
| 2 | 13.05.31005 | CP9660-115 | 9668 Piston - 31.8mm / 1.25" | 2 | 9668 only |
| 2 | 9669 Piston - 34mm / 1.34" | 2 | 9669 only | ||
| 3 | 13.05.31006 | CP9665-116 | 9668 Piston - 38.1mm / 1.5" | 2 | 9668 only |

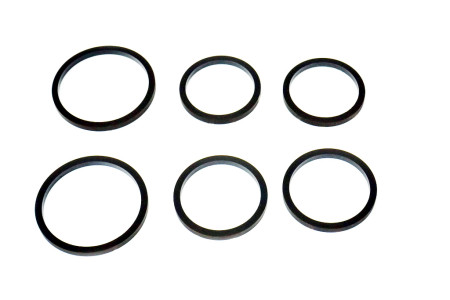

| 4 | 08 04 854 | CP8518-CEJ | 9668 Seal Kit | 1 | |
| 4 | 08 04 858 | CP8518-ACF | 9669 Seal Kit | 1 | |
| 5 | 08 04 500 | CP3880-1 | M10 Bleed Screw Kit (Includes 2 Screws) | 1 | |
| 6 | 13.05.30030 | CP9440-116ST | M5 Button Screw For Wear Plates | 4 | |
| 7 | 13.05.30039 | CP9668-106 | Wear Plate - Right Hand | 2 | |
| 13.05.30040 | CP9668-107 | Wear Plate - Left Hand | 2 | ||
| 8A | 13.05.30034 | CP9665-121A | Pad Retainer Block | 2 | |
| 8B | 13.05.30014 | CP3715-117ST | Pad Retainer Bridge Bolt | 2 | |
| 9A | 13.05.30035 | CP9665-118 | Pad Retainer Clip | 1 | |
| 9B | 13.05.30036 | CP6268-110 | Retainer Hinge | 1 | |
| 9C | 19 04 156 | CP3160-106ST | M6 x 12 Screw | 1 |
CP9660 / CP9661 6-Piston front
| CALIPER | CP9660 / CP9661 | |||
| REFERENCE # | ESSEX SKU (LINKS BELOW) | AP RACING PART NUMBER | DESCRIPTION | QTY PER CALIPER |
| 1 | 08 04 500 | CP3880-1 | M10 Bleed Screw Kit (Includes 2 Screws) | 1 |
| 2 | 13.05.30030 | CP9440-116ST | M5 Button Screw For Wear Plates | 2 |
| 3 | 13.05.30031 | CP9660-110 | Wear Plate - Right Hand | 1 |
| 4 | 13.05.30032 | CP9660-111 | Wear Plate - Left Hand | 1 |
| 5 | 13.05.31002 | CP9660-116 | 9660 Piston - 38.1mm / 1.5" | 2 |
| 6 | 13.05.31001 | CP9660-115 | 9660 or 9661 Piston - 31.8mm / 1.25" | 2 |
| 7 | 13.05.31000 | CP9660-114 | 9660 or 9661 Piston - 27mm / 1.06" | 2 |
| 13.05.31003 | CP9661-110 | 9661 Piston - 28.6mm / 1.125" | 2 | |
| 8 | 08 04 854 | CP8518-CEJ | 9660 Seal Kit | 1 |
| 08 04 852 | CP8518-CDE | 9661 Seal Kit | 1 | |
| 9 | 13.05.30013 | CP3796-121ST | Pad Retainer Bridge Bolt | 2 |
| 10 | 13.05.30033 | CP9660-113 | Pad Retainer Block | 2 |
CP9449 / CP9450 / CP9451 4-Piston Rear
| CALIPER | 9449 / 9450 / 9451 | |||
| REFERENCE # | ESSEX SKU (LINKS BELOW) | AP RACING PART NUMBER | DESCRIPTION | QTY PER CALIPER |
| 1 | 08 04 500 | CP3880-1 | M10 Bleed Screw Kit (Includes 2 Screws) | 1 |
| 2 | 13.05.30030 | CP9440-116ST | M5 Button Screw For Wear Plates | 2 |
| 3 | 13.05.30042 | CP9444-113 | Wear Plate - Left Hand | 1 |
| 4 | 13.05.30041 | CP9444-112 | Wear Plate - Right Hand | 1 |
| 5 | 13.05.31007 | CP9451-106 | 9451 Piston - 25.4mm / 1" | 2 |
| 13.05.31008 | CP9450-106 | 9450 Piston - 27mm / 1.06" | 2 | |
| 13.05.31009 | CP9449-106 | 9449 or 9451 Piston - 28.6mm / 1.125" | 2 | |
| 6 | 13.05.31010 | CP9445-108 | 9450 Piston - 31.8mm / 1.25" | 2 |
| 13.05.31011 | CP9449-107 | 9449 Piston - 34mm / 1.338" | 2 | |
| 7 | 08 04 843 | CP8518-DF | 9449 Seal Kit | 1 |
| 08 04 842 | CP8518-CE | 9450 Seal Kit | 1 | |
| 08 04 840 | CP8518-AD | 9451 Seal Kit | 1 | |
| 8 | 08 04 547 | CP3596-112ST | Pad Retainer Bridge Bolt | 1 |
| 9 | 13.05.30038 | CP9440-110 | Pad Retainer Tube | 2 |
