Spare Caliper Parts/Accessories

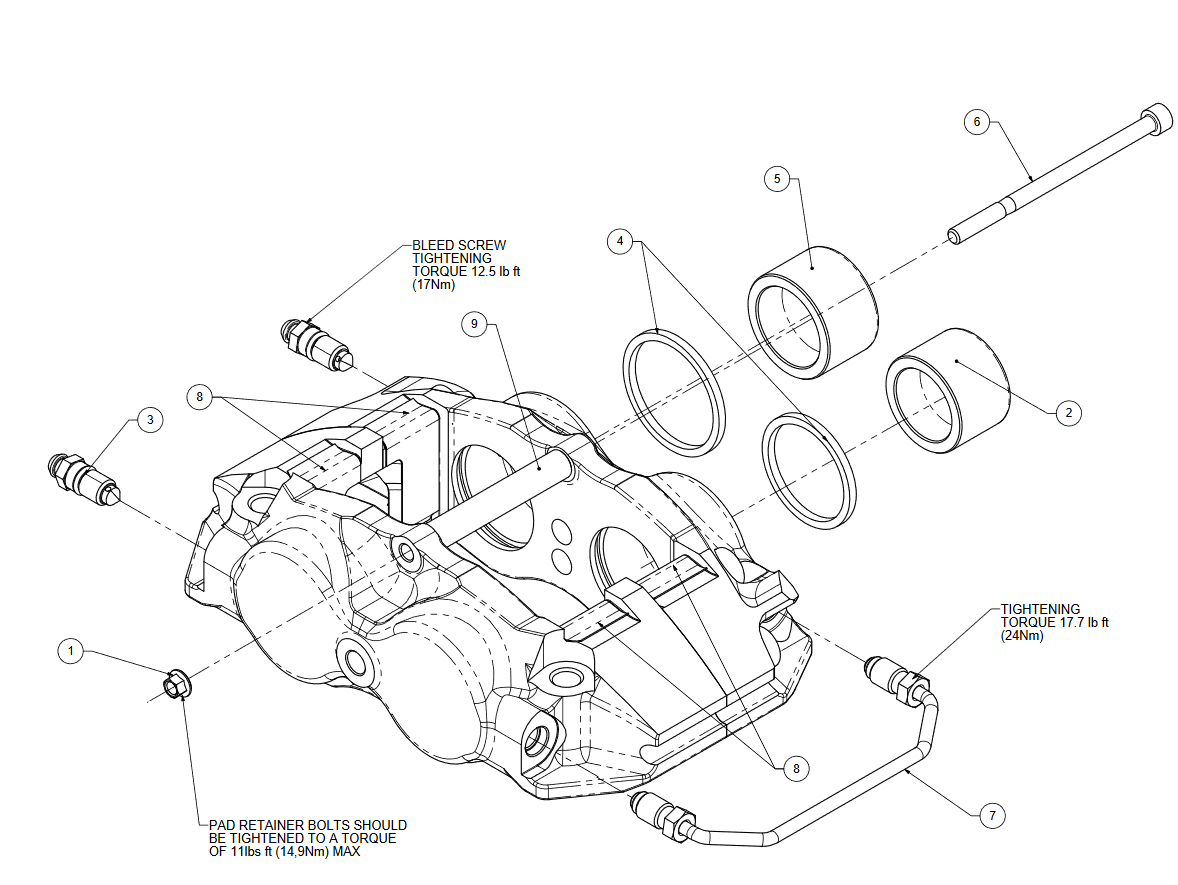

| REFERENCE | ESSEX SKU | AP RACING PART NUMBER | DESCRIPTION | QTY PER |

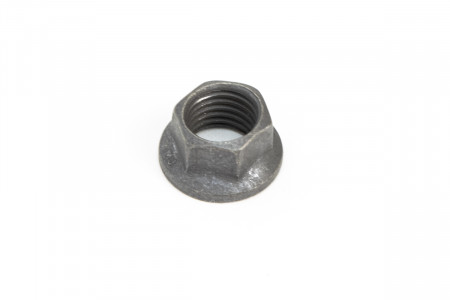

| 1 | 19 06 352 | CP3423-107 | M6 Kaylock Nut For Pad Retainer Bridge Bolt | 1 |
| 2 | 19 03 001 | CP5040-108 | 38.1mm / 1.5" Piston | 2 |
| 3 | 19 03 105 | CP3720-182 | 3/8-24 UNF Bleed Screw | 2 |
| 4 | 08 04 919 | CP4518-JK | Seal Kit | 1 |
| 5 | 19 03 002 | CP8350-119 | 41.3mm / 1.625" Piston | 2 |
| 6 | 19 03 168 | CP3439-111 | Pad Retainer Bridge Bolt M6 x 1.0 | 1 |

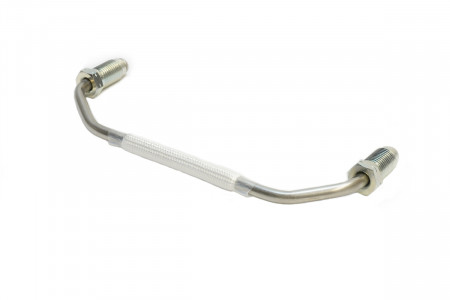

| 7 | 19 03 006 | CP8350-8 | Crossover Tube | 1 |

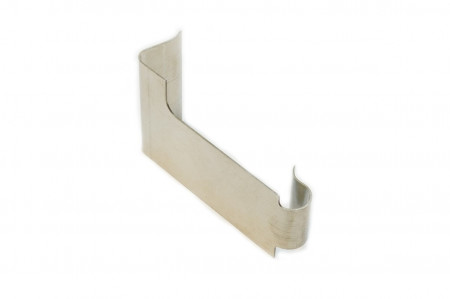

| 8 (Left) | 19 03 261 | CP8250-109 | Wear Plate - Left Hand | 2 |

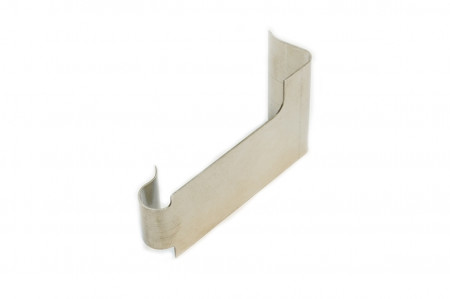

| 8 (Right) | 19 03 260 | CP8250-108 | Wear Plate - Right Hand | 2 |
| 9 | 19 03 169 | CP8350-132 | Pad Retainer Sleeve | 1 |
