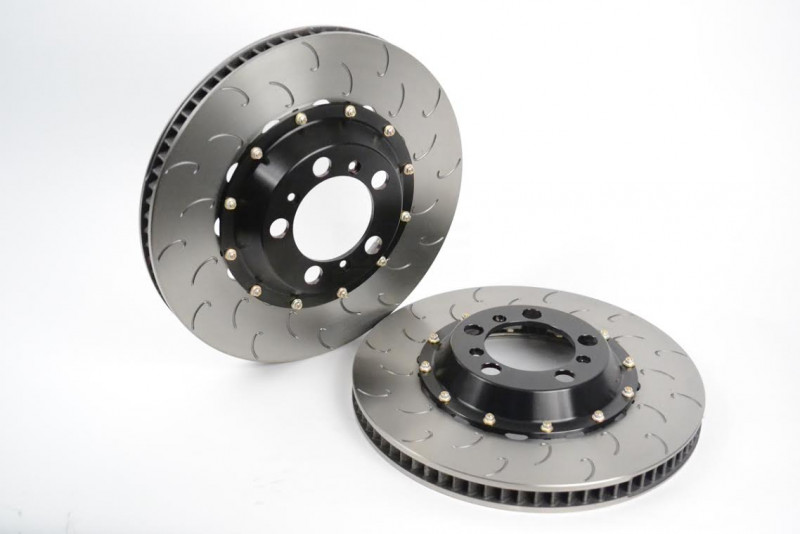

AP Racing by Essex 2-piece Competition J Hook Disc Pair (Front 350x34mm)- Porsche OEM 340mm replacement

Part #: 13.01.20036

Brand: Essex & AP Racing

AP Racing by Essex 2-piece Competition J Hook front discs for Porsche models with 340mm OEM front rotors:

  • 13.78" x 1.4" (350mm x 34mm) 72 Vane, D66 radial depth
  • Includes required caliper relocation spacers
  • Huge increase in airflow, cooling capacity, and durability vs. OEM
  • Designed for: club racing, time trial, autocross, HPDE
  • Works with OEM calipers, no modifications required
  • Ultralight, fully floating, anodized billet aluminum hat with float control/anti-rattle clips

Show All vehicles this product fits

$1,559.00

The product you’re after is currently not ready to ship, but please don’t panic! We can likely put it in your hands very soon. For brake kits or disc kits, we typically have the components on-hand to build one for you, and most ship within 2 business days of the order date. Please call us at 704-824-6030 for a firmer delivery timeline.  |  Add to Wishlist




Iron vs. Carbon Ceramic Brake Discs

In the past few years, Carbon Ceramic brake discs have become increasingly popular on high-end sports cars as either standard equipment or as a factory installed option. Although expensive, they're a great choice for a car that is used exclusively on the street. They save a large amount of unsprung weight, they don't generate much brake dust, have low NVH, and they may even last longer than the rest of the car! For the avid track enthusiast however, they're typically not the best choice.

On the racetrack however, repetitive stops from high speeds generate considerably higher brake disc temperatures vs. what could ever be legally or sanely achieved on the street. Various manufacturers producing the current crop of carbon ceramic discs claim to match iron disc durability on the track, but our experience tells us otherwise. While they may be less resistant to warping or deformation at repeated elevated temperatures, the biggest problem with carbon ceramic discs is that they tend to oxidize at track temperatures, showing rough surface eruptions on the disc face. In some cases the oxidation is terminal (chopped fiber discs), and the discs must be scrapped once it occurs. In other cases (continuous fiber discs), the discs can be resurfaced, but only a limited number of times and at a high cost. Most carbon ceramic discs are measured in terms of minimum mass, rather than the traditional minimum thickness used to measure iron discs. Once the minimum mass is reached, the carbon ceramic disc is trash.

Below is an oxidized carbon ceramic disc. Notice the dark spots in which the surface is flaking off / eroding. When your disc looks like this, it has become a $2,000 paperweight!

Other Potential Pitfalls with Carbon Ceramic Discs

  • Low airflow and rapid heat transfer- If you look at a specific car model that offers both iron and carbon ceramic discs as an option, the carbon ceramic discs will almost always be considerably larger in overall dimension, with a specific emphasis on a tall radial depth (distance from outer disc edge to inner disc edge). Whereas an iron disc uses a web of directional internal vanes to speed airflow through the disc, most carbon ceramic discs rely on their large surface area to radiate heat into the air surrounding the disc. Hence, the tall radial depth.
  • Expensive and limited range of compatible brake pads- There aren't many brake pad options with carbon ceramic discs. The pads must be compatible with the specific disc material being used, and if they aren't, they can destroy the discs in a hurry. Since brake pads are a very personal choice to most track junkies, carbon ceramic discs don't provide many options for the driver to chase a desired feel. Also as noted above, carbon ceramic discs tend to be very tall radially, which means very large brake pads are required. In the world of brake pads, price is usually directly proportional to size: Bigger = more expensive.
  • Poor feel- Experienced drivers will tell you that cast iron discs provide superior pedal feel due to less compress-ability. Some drivers find that carbon ceramic discs feel soft or abrasive at lower temperatures, but feel like stone with little modulation once they heat up. Feel and the resulting confidence is rather important when hurtling towards a guardrail at 150mph!
  • High replacement disc cost- Carbon ceramic replacement discs can be hideously expensive. If you do wear out or damage a disc, it can cost thousands of dollars to replace each one. When running carbon ceramic discs hard on a racetrack, the odds of having to replace one or more of them increases exponentially vs. if you only drive your car on the street.
  • Damage-prone- Many manufactures suggest covering their carbon ceramic discs when handling them, so they are not chipped or fractured. One knock when changing a wheel can destroy a disc. Additionally, some chemical wheel cleaners or abrasives used in car detailing can damage carbon ceramic discs.
  • Splinters- Carbon ceramic discs shouldn't be handled with bare hands, as they can leave carbon splinters in the skin.
  • Greater sensitivity to burnishing/bedding-in- Most manufacturers have an explicit, and sometimes intricate, set of instructions for bedding-in their carbon ceramic discs. Iron discs can typically be prepared via a simple series of stops from 60-80 mph with the brake pad of choice.

Carbon Ceramic is NOT Carbon/Carbon

At this stage you may be saying to yourself, "But I saw that the XYZ professional race cars were running carbon brakes at the track." The carbon brakes currently being used in professional racing are carbon/carbon (abbreviated C/C), which is actually a different material vs. the carbon ceramic discs used on road cars. The carbon ceramic brake discs on road cars are a Carbon Ceramic Matrix (CCM). In recent times many professional racing series (F1, ALMS, IRL, etc.) have switched to carbon/carbon brake discs in an effort to reduce weight. Carbon/Carbon is an outstanding lightweight material for racing, but requires heat before it starts to generate usable friction. As such, they're completely ill-suited to a typical morning commute in a road car!

Iron Disc Benefits

So what can AP Racing J Hook iron discs do for a car previously equipped with carbon ceramic discs?

  • Increased airflow and slower heat transfer to other brake components- AP Racing J Hook discs have a unique, high-count vane design that promotes airflow, heat evacuation, and rapid cooling. They don't rely on a large surface area to cool via radiation. The iron discs will move more air than your carbon ceramic's, and as a result they won't heat your brake pads, caliper pistons, and brake fluid up as quickly. You'll be able to run longer sessions without brake fade, and you'll enjoy the confidence that comes along with them. They'll also make any brake ducts that you have on the car more effective and useful.
  • Huge range of compatible brake pad compounds- Iron discs will open up a much greater range of available brake pads. You'll be able to achieve a different feel, and tailor your brake setup depending on your needs and environment, whether that is running an AutoX or the most demanding racetrack in your area. You'll also likely be paying less per brake pad set than you were previously, and your pads will last longer.
  • Inexpensive spare discs- You'll no longer have to spend thousands of dollars when it's time to replace your discs. AP Racing J Hook's typically only cost $300-500 per iron disc ring, so you won't have to stress about anything happening to them. They're inexpensive enough that you can always keep a spare set on hand, so you won't have to worry about any brake-related downtime when you're out at the track.
  • Durability- Iron discs can take a beating. You can stash your spares in your race trailer, and you won't have to worry about handling them, covering them, dinging them, or chipping them when changing your wheels.

As you can see, although iron discs do come with a slight weight penalty, they're still the smart choice if you run your car hard on the racetrack. They're the obvious solution that has been proven countless times on tracks around the world, at all levels of motorsport.

Among iron disc choices, there are none better than AP Racing J Hooks. AP Racing J Hook Discs are the epitome of endurance racing components. They will hold up extremely well to any abuse you plan to throw at them. These discs have been proven time and again in professional racing, winning many races and championships (ALMS, Rolex, Grand Am, etc.).

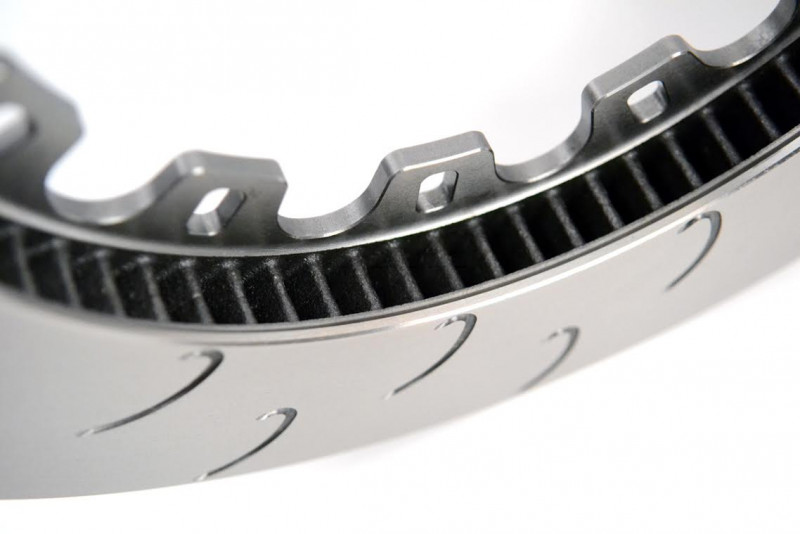

Two-piece Floating Design with Aluminum Hat

As is the case with most metal, iron brake discs grow substantially when heated. As it is heated, a disc expands radially, increasing in diameter and circumference. One-piece disc designs run into problems when this occurs. Look at the picture below and imagine the disc is being heated on the track. As the disc expands, the outer edges of the disc are pulling away from the center of the disc, but there are no built-in provisions to allow for that expansion. The edges of the disc therefore pull, lift, and distort, which is called coning. Now imagine that disc vertical on the car, running in your caliper. Coning directly impacts the brake pads’ contact with the disc, leading to uneven wear and tapering, and even a long brake pedal.

Two-piece discs on the other hand, compensate for the expansion of the disc as it heats. This is accomplished by building ‘float’ into either the disc itself, or the disc hat/bell. In this case, the float is in the disc. If you look closely at the picture below, you can see that the mounting holes for the hat attachment bobbins are not round. They are an oblong shape. These channels allow the hat mounting hardware to slide as the disc is heated and expands, allowing the disc to run true in the caliper without distortion. That means less distortion, stress cracks, and pad taper.

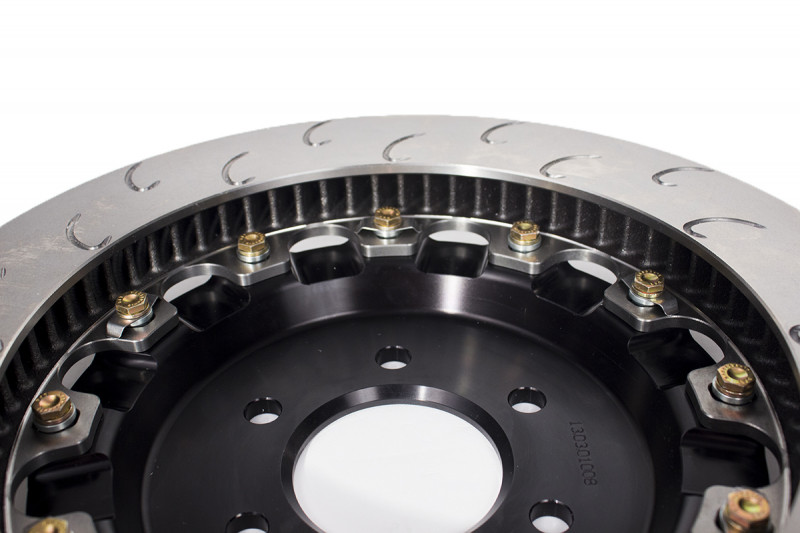

Mounting Hardware and Anti-Knockback Spring Clips

If you look closely at the mounting hardware we use on our Competition Discs, you’ll notice a few details that are often overlooked in lesser products. These components are specially made for their intended purpose. These are not cheap bolts found at your local big box store. They are custom made in the USA for Essex and AP Racing, and they are the exact same components we use on professional racing products.

In order to help control the lateral motion of the disc, which pushes the pistons back into the caliper, we use an anti-knockback spring clip on every other disc attachment point (on a ten bolt disc there are five spring clips, while on a twelve bolt disc there are six). These spring clips help keep the disc hat and iron ring in alignment, while still allowing the disc to expand and float radially. As an added bonus, they prevent the hat and iron disc from rattling and making noise.

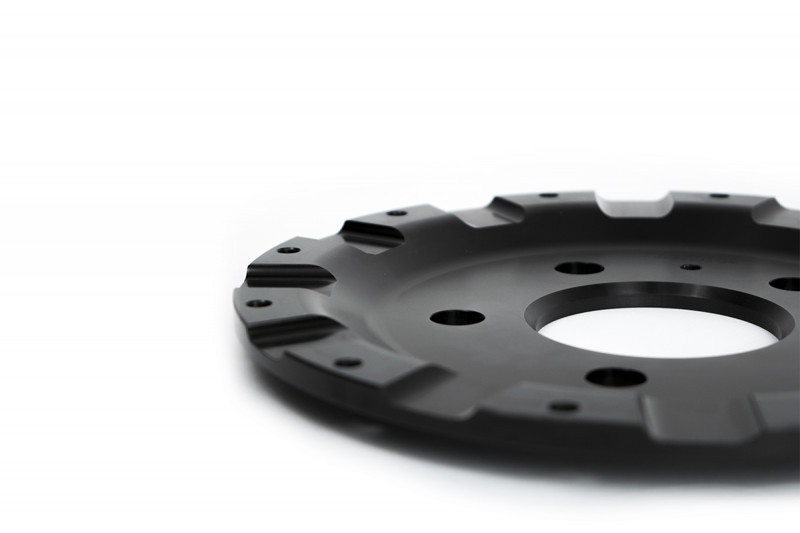

Hat Design

Floating two-piece discs also have the added benefit of reducing heat conduction to the hubs and bearings, decreasing wear and tear on these costly components. The disc hats themselves are manufactured from 6061 heat-treated billet aluminum, with a hard anodized coating. This material was specifically chosen for its strength at high temperatures, as it will be in direct contact with the searing hot iron discs. The hats feature scallops on the underside, to allow for heat evacuation along the outer disc face once installed.

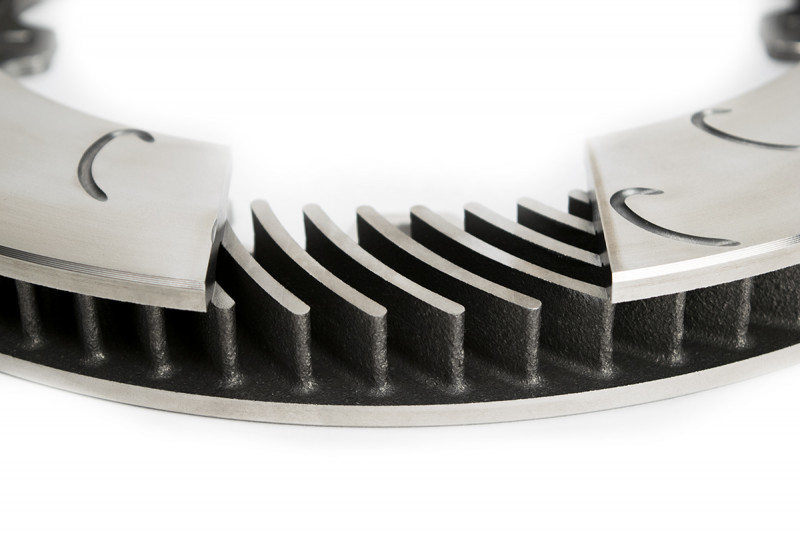

Internal Vane Quantity and Quality

The internal vane design on AP J Hook Discs is quite a bit different vs. OEM-style discs and other brands of aftermarket discs. Many OEM discs feature a pillar vane design, which can be thought of as a group of posts or pillars connecting the two disc halves together (see pic below). The pillars are not organized linearly from the outside to the inside of the disc, and turbulence is created as air flows through and among them. Pillar vane discs are therefore not particularly well suited to heat evacuation. The goals of a pillar vane design are disc face stability for low NVH (noise, vibration, harshness), and a low cost of production. Pillar vanes are non-directional, and the same part number is used on both sides of the car (again for cost reduction). Other OEM discs feature a straight, non-directional internal vane. While that type of vane flows more air than a pillar, it does not move nearly as much air as the directional vanes featured in AP Racing's discs. Having directional vanes means that AP Racing discs are handed. There is a unique left disc and a right disc in each pair, and they cannot be swapped from side-to-side on the car. The orientation of the vanes is optimized to spin in a certain direction, pumping the maximum amount of air possible through the disc. The shape of these internal vanes is also optimized to promote smooth airflow.

In addition to having a superior internal vane design, AP Racing discs have far more of them! Most aftermarket discs have 30 to 48 vanes. After extensive CFD and thermal stress analysis, AP designed the Competition J Hook's with a high vane count (typically 60 to 84 depending on application). Having more vanes increases airspeed and heat transfer through the disc, reduces air recirculation between vanes, and reduces deflection at the disc face. Compared to an OEM-style disc or competitor's 48 vane discs, the 60+ vane discs are less prone to coning, distortion, and cracking, while providing less brake fade, reduced judder, more even pad contact, and a longer service life.

Below is a comparison of a one-piece OEM pillar vane disc and an AP Racing two-piece J Hook. A few things to note in these pictures: The AP Racing disc has a much wider air gap between the disc faces, allowing considerably more airflow into and through the disc. The uniform, directional vane design also contributes heavily to superior airflow.

Most of the cooling air that enters a brake disc comes from the back side of the discs, particularly if brake ducts are being employed. The top disc is an OEM pillar vane. The second disc is an OEM dual-cast disc (which is technically a two-piece disc). The bottom disc is the AP Racing J Hook. Which of these discs do you think will flow the most air? While the OEM discs have narrow inlet port and/or obstructions blocking the disc vanes, the AP Racing disc offers a clear path for cooling air to enter and flow through the disc. The result is significantly cooler discs that are less prone to cracking and wear.

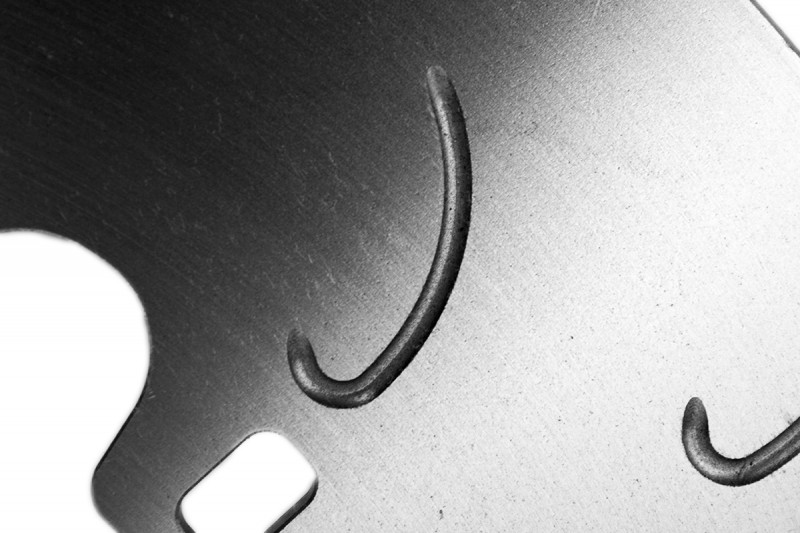

Exclusive AP Racing J Hook Slot Pattern

When you cut a slot or drill a hole in a disc you impact heat transfer. The area around the slot or hole acts as a cool spot when the disc heats up, which is not ideal. Ideally, heat is distributed uniformly around the disc so it can be hit with the cooling air that is pumping through the disc, radiate outwards away from the disc, etc. Cool spots create stress risers and increase the likelihood of the disc cracking. They also cause the face of the disc to distort unevenly, leading to uneven pad deposits, vibration, and judder.

The OEM discs avoid this problem by simply leaving the face blank. While the risk for NVH goes down, so does the pad bite and feel of the disc through the brake pedal. Competitive aftermarket offerings typically have straight slots, which tend to leave cool spots across the disc face between the slots.

During exhaustive R&D testing, AP's J Hook design was found to create a constant pathway of evenly distorted material on the face of the disc. The hooks are spaced out as evenly as possible both around the circumference of the disc, as well as from the inside edge (where the hat attaches) to outer edge, with a slight overlap to promote even heat distribution/distortion. In addition to reducing cracking, the even heating of the disc also helps provide an even transfer layer of pad material on the disc when you bed them in.

Additionally, the J Hook slot pattern produces a greater number of leading edges for the pads to bite into vs. a traditional curved slot pattern, and particularly a plain-faced disc. While this may lead to slightly more whirring or scraping noises from the discs when applying the brakes, the benefits of more even heat distribution, less propensity to crack, cleaner pad material transfer during bed-in, and more bite far outweigh the slight increase in NVH for the serious enthusiast.

Feature: Complex Metallurgy Developed Through 50+ Years of Experience

AP Racing has been designing brake components for more than 50 years. They've had their components on cars that have won more than 750 Formula 1 races! On any given race weekend, AP J Hook discs can be found on 75% or more of the NASCAR Sprint Cup grid. AP has learned from these experiences, and have developed a proprietary iron alloy with extreme durability, designed specifically for what you intend to do with it (flog the hell out of it). The primary objectives with OEM discs are simple: they must be cheap and easy to produce. The design objectives for these two products are vastly different.

Disc Burnishing/Bedding Service

If your brake discs aren’t being properly prepared for abuse prior to flogging them on track, you’re exposing yourself to potential judder, vibration, and cracking issues. We all know that prepping your pads and discs at the track can be difficult. Doing so wastes time during the first session of the day, and it's a hassle and potentially dangerous for other drivers as you go through the procedure. Track time is expensive and tough to come by. The more time you spend behind the wheel performing an elaborate bed-in procedure, the less time you’ll spend doing hot laps. Performing the procedure on-track also limits its repeatability. You can't control what's going on around you with track conditions, other drivers, etc., and many track configurations don't really lend themselves to the constant start/stop/start required to do the job properly.

Essex is now offering a solution via our professional burnishing service. Previously reserved for our professional racing customers, we are now offering our retail customers the option of having the discs in select Competition Brake Kits pre-burnished at our factory. We burnish thousands of discs for the top racing teams each year. After countless hours of experimentation, and extensive feedback from the top drivers and teams, we can consistently squeeze the most reliable performance out of AP Racing's discs. The procedure is incredibly repeatable, as it is performed on a computer-controlled machine by experienced technicians.

The cost of our burnishing service is only $50 per disc, making it an affordable, time-saving option that will produce far more consistent and safer results than trying the procedure on your own.

Watch a brief video of our disc burnishing service here.

Reasonable Replacement Cost

Let's face it, no matter how good a brake disc is, it's still a consumable item. They're no different than brake pads or gasoline. You beat them up until they crack to pieces, then you throw them away. If replacement iron is too expensive, you're always driving in fear, waiting to shell out big bucks for a new set. Despite having the most expansive set of features on the market, our replacement iron rings are completely affordable.

Going to the track is expensive! Event entrance fees, hotels, fuel, and tires all add up. While you obviously want the best product available, you can't afford to pay a small fortune for something you're just going to destroy. You can buy a cheap set of $150 discs for every event, have relentless heat issues, and find yourself constantly swapping them out. When you do the math, the long-term value of the AP J Hook's is tough to beat. You'll enjoy all the benefits without breaking the bank, and you'll spend more time driving and less time wrenching.

Elite level teams choose AP Racing discs because they know the work has been done to provide the best available product at any price level. The AP J Hook is a direct derivative of AP's vast racing experience. You can buy with confidence knowing that you're getting the best product available at any price point. A note of caution however: the J Hook design is often imitated, and there are a number of lesser quality imitations on market. Before purchasing, make sure you are getting an authentic AP Racing J Hook.

Advantages Over OEM Brake System

Our Essex Designed J Hook Competition Brake Discs offers our customers the following advantages over the OEM front discs:

  • Championship-winning 72 vane fully-floating AP Racing J Hook rotor design
  • Huge increase in airflow, cooling capacity, and durability vs. OEM discs
  • Disc metallurgy specifically designed to handle the temps typically seen on track offer a long service life
  • Replacement iron disc rings available at an extremely competitive replacement price ($349 each)
  • Anti-knockback/anti-rattle disc attachment hardware
  • Available disc burnishing service ensures that your kit arrives ready to be installed and driven hard immediately

Model Year




Essex/AP BBK

Disc

CP7172-102/103GA


Type

2-piece floating


Weight

23 lbs.

Diameter

350mm

Thickness

34mm

Radial Depth

66mm

No. of Vanes

72

If your brake discs aren’t being properly prepared for abuse prior to flogging them on track, you’re exposing yourself to potential judder, vibration, and cracking issues. We all know that prepping your pads and discs at the track can be difficult. Doing so wastes time during the first session of the day, and it's a hassle and potentially dangerous for other drivers as you go through the procedure. Track time is expensive and tough to come by. The more time you spend behind the wheel performing an elaborate bed-in procedure, the less time you’ll spend doing hot laps. Performing the procedure on-track also limits its repeatability. You can't control what's going on around you with track conditions, other drivers, etc., and many track configurations don't really lend themselves to the constant start/stop/start required to do the job properly.

Essex is now offering a solution via our professional burnishing service. Previously reserved for our professional racing customers, we are now offering our retail customers the option of having the discs in select Competition Brake Kits pre-burnished at our factory. We burnish thousands of discs for the top racing teams each year. After countless hours of experimentation, and extensive feedback from the top drivers and teams, we can consistently squeeze the most reliable performance out of AP Racing's discs. The procedure is incredibly repeatable, as it is performed on a computer-controlled machine by experienced technicians. The cost of our burnishing service is $50 per disc ($100 per brake kit).

Please note that the pads you receive will not be pre-burnished. In other words, the pads and discs do not have to be a matched set burnished together to reap the benefits the procedure has on the discs. In other words, we will burnish the discs in the pad compound you choose, they just won't be burnished with the exact set of pads that will arrive with your kit.


If you'd rather have a go at preparing your discs yourself, please watch the video below:

Competition J Hook Disc FAQ

Q: Where can I buy one of your brake kits?

A: Essex sells directly to both retail customers and through an extensive network of wholesale dealers/resellers across North America. You can check our Dealer Locator tool to find a local reseller. The other option is to place an order directly on our website, or call us to place an order by phone.

Q: Do Essex Designed Competition Brake Kits come with pads?

A: No. Brake pads are like ice cream, they come in many different flavors, and everyone likes something different. We could have included a cheap set of pads like some other manufactures offer, but that won't help our customers. Your best bet is to get our recommendation on which pad is right for your usage conditions. You can read more about brake pad selection in our article "How to Choose the Best Street and Track Brake Pads."

Please note that we do offer discounted pads at the time you purchase our brake kit.

Q: Do you have a brake pad that works well on both the street and the track?

A: No such pad exists. There will always be a compromise when running a pad in an environment for which it was not specifically designed. See the two questions below for more details.

Q: Is it okay to run street pads on the racetrack?

A: No! Street pads are designed to chase groceries, not lap times. If you overheat a street pad beyond its max operating temperature, you risk not only destroying those pads, but your discs as well. Essex always recommends using street pads on the street, and race/track pads on the track. Please see "How to Choose the Best Street and Track Brake Pads" for a more detailed explanation and guidance on pad choice.

Q: Is it okay to run race pads on the street?

A: Most race pads are designed to work optimally at high temperatures. As such, they many times don't have good cold bite, making them a poor choice for street use. Even if they do have cold bite, they will likely make a lot of squealing and screeching noises, produce heavy dust, and chew your discs up in a hurry when driven around cold. Please see "How to Choose the Best Street and Track Brake Pads" for a more detailed explanation and guidance on pad choice.

Q: How much brake fluid do I need when installing my brake kit?
A: Essex recommends three 500ml bottles of brake fluid. That will be enough to bleed the brakes during the initial install, and have a little bit left over if a second brake bleed is required.

Q: Which brake fluid is best for me?

A:AP Racing offers five different brake fluids to meet all customer needs and budgets. If you're tracking your car regularly, you should be looking at AP Racing R2, R3, or R4.The main difference between those fluids is their boiling points. Please check the product page for each to see which best matches your needs and budget.

Q: Is it okay to just buy your front-only brake kit? What about the rears?

A: Our front brake kits are designed to very closely mimic the OEM torque output on the front axle. That is accomplished by carefully sizing the discs and caliper pistons. For example, if we increase the disc diameter in our kit vs. stock, we decrease the overall piston area to produce the same overall torque output as the factory setup. As such, installing our front kit on your car will only have a negligible impact on brake bias. In most cases, the shift in brake bias is only in the 2-3% range. To put that in perspective, installing a more aggressive brake pad compound in your factory front calipers would typically have a greater impact on brake bias than installing our front kit while keeping the OEM front pad compound.

On most front-engine sports cars, the front brakes are taxed much more heavily than the rear brakes. That's why the front brakes are almost always larger, and why you go through 2-3 sets of front pads and discs for every set of rears you burn up at the track. The fronts do a disproportionate amount of work, and as such, they are the most critical component to upgrade. On many platforms, rear brake upgrades offer diminishing returns. The rear factory components tend to be smaller and lighter than the front components. As such, switching to AP Racing calipers and discs don't usually offer the dramatic unsprung weight savings that they do on the front. Since the rears tend to not run as hot, simply running good race pads and stainless steel lines on the rear will solve or prevent any rear brake issues.

On a rear-engine car, the rear brakes do a proportionately higher amount of work than on a front-engine car. As such, brake wear tends to be more balanced on the front and rear, and rear upgrades can be more relatively more important to the overall system performance.

Q: Will your brake kit mess with my ABS, stability control, torque vectoring, or disrupt my front to rear brake bias/balance?

A: No! Since our systems closely mimic the factory brake torque output on a given axle as described above, they have no noticeable impact on ABS, stability control, torque vectoring, etc. The brake pedal will feel much better due to lower compliance, and the brakes will take a far greater beating for considerably longer. You won't have any wonky ABS issues, however.

Q: Do I have to modify my spindle or do any fabrication to install your brake kit?

A: In 99% of all cases, no. On a few of our kits you may have to grind down some spindle casting flash to get a caliper bracket to seat properly. This can be done with a hand file or Dremel. You don't need to be an engineer or feel intimidated about installing one of our kits. Since we don't use universal caliper brackets or hats, our kits are all custom creations designed specifically for your car. That means when they are installed properly, they will integrate seamlessly with the vehicle. All of that said, if you have any concerns about doing the job, it will always be safer to have the install completed by a certified mechanic.

If you look at the "Wheel Fitment & Installation" tab on the product page, you can download our install manual and see what is involved.

Q: Do I have to change my master cylinder to use your kit?

A: Absolutely not. Our kits bolt on at the wheel end with simple hand tools. No other modifications are required.

Q: Will your brake kit significantly shorten my stopping distances with all else held equal?

A: No! Tires stop your car. Brakes turn the energy of the spinning brake discs into heat. The primary function of a properly designed big brake kit to withstand the heat encountered during the repetitive and heavy use of the brakes. Anyone who sells you a brake kit specifically to shorten your stopping distances is lying to you. If you want shorter stopping distances, buy stickier tires. If you want your brakes to feel exactly the same on the last lap of the day as they did on the first lap, buy our brake kit.

Q: I saw that your brake kits reduce unsprung weight…will that help me?

A: Yes! Reducing unsprung weight not only improves braking performance, but also translates to superior acceleration and cornering as well. As is the case with switching to a lighter wheel and tire combo, installing a lighter brake package can improve your car's overall performance envelope.

Q: I installed my brake kit, but my pedal is still a bit mushy. Why?

A: You still have air trapped somewhere in your brake system. A closed hydraulic system is based around brake fluid that is not compressible. As such, your pedal should be firm with relatively short travel after install. Sometimes air bubbles get trapped in your system however, and those air bubbles are compressible. During install, moving your caliper around at different angles, or tapping it lightly with a rubber mallet can work the air bubbles out to a bleed screw. Air bubbles also sometimes get trapped in your ABS system. Make sure to cycle the ABS via a scan tool or manually before doing another bleed.

Q: How do I retract the caliper pistons when changing pads?

A: We recommend using a small block of soft wood (pine) covered with a rag or cloth to press the pistons back into the caliper. Make sure no hard or rough surface is making contact with the caliper pistons. Leave a pad in one side of the caliper while pressing all of the pistons on the other side back into the caliper at the same time.

On four piston calipers, some people flip their brake pad vertical and use it to lever the pads back into their bores. We do not recommend doing so, as it may damage the pad, the disc against which you are levering, or the pistons themselves.

Q: Can I use "Speedbleeder" bleed screws in my AP Racing calipers?

A: Essex does not recommend any bleed screw other than the ones that came with your AP Racing calipers (which vary in size & thread pitch depending on the caliper).

Q: Can I get a Competition Brake Kit with calipers of a different color?

A: In most cases, are racing calipers are only sold with a hard anodized grey finish. The only exception are our kits that use the Pro5000R Radi-CAL calipers. They can be purchased with silver painted calipers for an additional $300.If you're dead set on red or black painted calipers, please check out our AP Racing Factory Big Brake Kits.

Q: Are spare parts available and reasonably priced?
A: Being a company brimming with racers and track junkies, we're very aware of the costs of running a typical track event schedule for the year...event fees, gas, hotels, tires, etc. It all adds up quickly. When we created our Competition Brake Kit product line, availability and long-term running costs were of paramount concern. We did a couple of things to address these issues. First we're buying loads of spares and keeping them on the shelf in our warehouse in Charlotte, NC. Buying in bulk also brings the cost down, so we can pass them along at prices that may surprise you for a premium European brand. When you look at the specification of our discs vs. the competition, AP's racing heritage, and the longevity you'll get from them, they are an incredible bargain. Most of the competitive discs on the market are 48 vanes or less, weigh more, have less optimized vane design, inferior metallurgy, and have never been proven under the same conditions as the AP Racing discs. Many of our race customers have run an entire season or more on a single set of discs.

Pads are another area of concern for us. We know that brake pads are a very personal choice, and that everyone wants to run something different. As such, the calipers we're using in our systems use some of the most commonly available pad shapes on the market, produced by just about every manufacturer in every flavor under the sun.

We also stock spare pistons, seals, springs, and other hardware components so they're available when needed in a pinch.

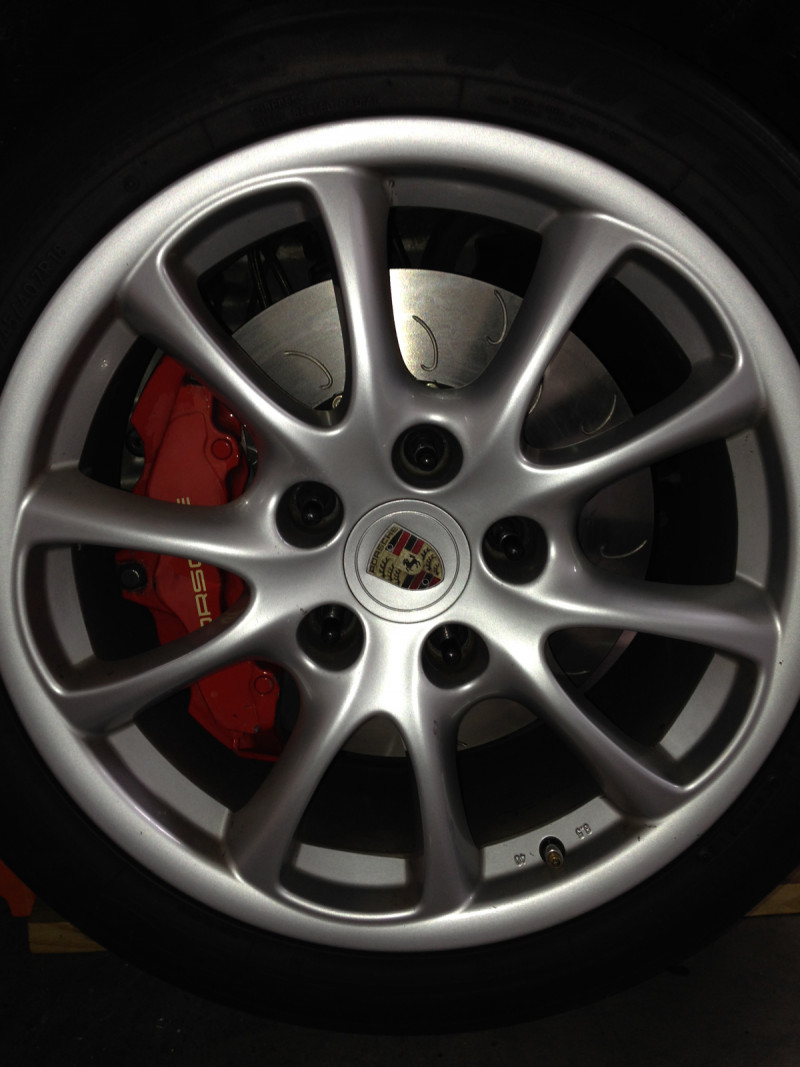

Q: Will your brake kit clear my wheels without a spacer?

A: Essex cannot guarantee wheel fitment, and we will not be held responsible for a kit not fitting behind particular wheels. That said, we do offer some tools to assist our customers in this area.

We provide a downloadable wheel fitment template or every brake kit we sell. All you have to do is download it, print it to scale (check with a ruler), and stick it inside the wheel in question. Another option would be to have your wheel seller check for you using the template.

If we've had a customer confirm fitment of our kit with a particular wheel, we also list it in the wheel fitment tab on the product detail page for that particular kit. Again, these details are provided by customers, and we cannot guarantee their validity.

Q: Which side of the vehicle is left, and which is right?

A: If you're sitting in the driver seat of a USDM vehicle, you are on the left side/driver side. The other side is the passenger side/right side.

Q: Which disc is the left hand disc, and which is the right?

A:To illustrate further

Q: How do I bed-in / burnish my new pads and discs?

A: We have a detailed video that goes into the burnishing procedure in great depth. Please see our video "How to Bed-in Brake Pads and Rotors."

Q: I have a vibration or judder when I press the brake pedal. How do I get rid of it?

A: What you are experiencing is most likely an uneven brake pad deposition on the disc face. What that means is brake pad material is stuck to the face of your brake disc in splotches and patches. On a properly bedded/burnished disc, that material is evenly distributed around the disc. If it is unevenly smeared on the disc, high spots are created on the disc face. Every time you press your brakes and the pads come in contact with that high spot, you feel it as a judder through the brake pedal and/or steering wheel. Our recommendation is to first try and remove those high spots by driving an aggressive set of race pads cold. When you drive race pads cold, they scrape material from the disc, rather than depositing material on the disc. In this manner you can "clean" your discs. To see this process in action, check out our video "Swapping Between Street and Race Brake Pads." To help prevent uneven pad deposits in the future, never come to a complete stop and leave your foot on the brake pedal after heavy brake use (coming off the track). Also, do not engage your parking brake under those conditions.

Q: Why do my brake discs feel slimy, and how do I clean this oil off of my brake discs?

A: The oil is to keep the discs from rusting while they are sitting in a warehouse and in transit. Washing them with soap and water will be sufficient to get them clean and prepped for install.

Q: Do I need to buy new discs, or machine my discs when I buy new pads?

A: No. As long as your discs are not below their designated minimum thickness, or cracked beyond use, you can run them with your new pads. Machining the discs is not required. That said, if you're switching to a different pad compound, it's usually a good idea to scrub your new discs first, to remove the old pad material from them. You can see details on this procedure in our video "Swapping Between Street and Race Brake Pads."

Q: My brakes squeal when I stop…what can I do?

A: One of the most common causes of brake squeal is poorly bedded discs. Please see our video "How to Bed-in Brake Pads and Rotors."

Q: I'm seeing a bit of tapered wear on my pads. What can I do?

A: It's extremely difficult to have zero pad taper. Longitudinal taper (end-to-end) is the most common. This phenomena is when the material burning off of the pad face gets trapped under the back edge of the pad, which causes them to wear unevenly. Our brake kits have differential piston bores (pistons of different sizes) to combat this issue, but we still sometimes see mild cases of it.

One thing you can do is flip your brake pads after each day of use on the track. Rearrange them so the edges that were on the trailing side today will be on the leading side tomorrow.

A: What does leading and trailing mean?

Q: Using a front brake kit as an example, a leading caliper is one that sits in front of the front axle, closest to the front bumper. A trailing caliper is one that sits behind the front axle, closest to the passenger compartment.

Q: I live in (country outside of North America).Can you ship me one of your brake kits?

A: Due to contractual obligations with AP Racing, Essex only ships big brake kits to physical addresses inside North America, or to a territory in which there isn't currently an authorized AP Racing distributor. To see if there is an authorized AP distributor in your area, please click here. Your other option is to contact one of our current authorized dealers and see if they can help you.

Q: Do you offer discounts to internet forum members, or to members of clubs and organizations such as NASA, SCCA, PCA, BMWCCA, etc.?

A: Due to the narrowly targeted nature of our products, just about every customer of ours is in some way involved with one of these organizations. If we offered this type of discount, we'd essentially be discounting to every single customer. That is not a policy that would allow us to stay in business and keep bringing you the best brake products on the market for your car!

Also, since we sell to wholesale customers, we cannot undercut them on price. As such, all products we sell to retail customers are sold at the retail price listed on our website.

Q: Do you offer sponsorships?

A: AP Racing is frequently recognized as the #1 brake supplier in professional racing today. Top teams from around the world in F1, Sprint Cup, ALMS, WRC, etc. pay a premium for AP Racing brakes because they are the best brake products available at any price. To receive any type of consideration for a sponsorship, you would have to provide an extraordinary amount of media coverage, and bring tangible benefits to the AP Racing and Essex brands.

From time-to-time we do have retail customers test new products. In those cases we would offer a small discount for providing feedback on those products.

Q: Why aren't the discs in your Competition Brake Kits bigger?
A: Our systems are derived from a racing mentality. In the pro racing world, teams scrap and scream to remove ounces of weight from the cars. Anything that is larger than necessary to get the job done is simply dead weight to drag around. That is how we approach our design. If you want to go faster and a 14" disc will work, a 15" disc will simply add weight, increase the moment of inertia, and hinder wheel fitment. Sure it will look pretty behind 20" wheels, but that's not what this product line is about.

These discs in our kits are being tortured in endurance racing events every weekend at the hands of some of the top drivers in the world. Yes those cars are significantly lighter, but they're also significantly more powerful, and far faster. If you think you'll give these discs a harder workout in your 20 minute DE session than these guys will when running the 24 Hours of Le Mans...no offense, but you're probably wrong. Please also keep in mind that the amount of energy transfer (changing kinetic spinning energy from the disc into heat) in a braking event is most heavily impacted by speed....more so than by weight. I'm going to get a bit technical here, so feel free to skip ahead if you feel your eyes glazing over!

The core formula for kinetic energy is:

kinetic energy = vehicle weight x vehicle speed2

Take note of that little superscript at the end. If you look at the equation above, you'll note that doubling the vehicle's weight would double the kinetic energy, but doubling the vehicle speed would increase the kinetic energy by a factor of four! So in plain English, that means a stop from 220mph on a lighter car is going to be tougher on the brakes than a stop from 140mph on a substantially heavier car.

When comparing discs, you can't simply look at the diameter and decide that one will be more effective than another. The number of vanes, air gap, wall thickness, vane shape, metallurgy, hat attachment design, etc. all have to be taken into account. It’s not just disc size that matters. It's all about design and optimization.

Wheel fitment is also of critical importance in our design process. As mentioned above, most of our customers run the smallest, lightest wheels available for the platform. I won't go into all of the merits of doing so, but obviously unsprung weight, lower rotational mass, cheaper tires, etc. all factor in. Our systems are packaged tightly to allow for a wide range of wheel fitment. Using an extremely large diameter disc kills wheel fitment, and the utility of a track-optimized brake system.

Q: Do your kits require more maintenance than other big brake kits on the market, due to the lack of dust boots, anodized caliper finish, etc.?
A: Absolutely not. We are perpetually shocked by this question, because it makes no intuitive sense. If you have a product that is specifically designed to handle the extraordinary high-heat conditions of track use, why would it require more maintenance when used under those conditions vs. brake components that were designed to cruise around on the streets at low speed?

When using your brakes on the track, dust boots are pointless. We've seen many people burn them up in a single session. Once that happens, you're just driving around with some tattered, burnt rubber bits attached to your pistons. We skip making that mess for you.

Also, many people confuse piston seals with dust boots. All calipers have seals. They're the little rubbery rings inside the piston bores. If a caliper didn't have a seal, your brake fluid would leak out around the pistons! Our calipers use special high-temp seals designed for track use. That means they are less likely to get brittle and wear out when used under high-heat track conditions, therefore increasing the service life of the caliper!

The anodized caliper finish we use also holds up better to track heat than paint or powder coat finishes, which shrink, crack, and change colors. The anodized finish will also fare better to a nice splashing of brake fluid, which we all know happens occasionally during bleeds.

To further reduce the maintenance load on our customers, Essex offers a complete rebuild service for the life of the product. You remove your calipers, drain the fluid, and ship them back to us. As AP Racing's only authorized caliper reconditioning center in North America, we rebuild stacks of calipers each year. We will put your calipers through our full reconditioning process. The average cost is roughly $100 per caliper, a very modest price to save you the time and effort, and you'll have the peace of mind that the job was done by a pro.

Q: What about driving with your brake kit in foul weather conditions?
A: We've had a few rally customers ask about foul-weather performance .Any aftermarket BBK will require similar maintenance and present the same problems in foul weather conditions. The most vulnerable area for problems is the attachment point between the iron disc and aluminum hat. That's why you don't see a whole lot of OEM two-piece discs using an aluminum hat. Over the years many OEM's use a dual-cast iron design with as few moving parts as possible. What happens is, that road salt and other gunk gets wedged between the hat and iron disc ring, and it is essentially impossible to remove short of taking the disc apart. The salt eats away at the aluminum hat, eventually flaking, chipping, etc. Again, this is a problem that will be encountered on ANY aftermarket big brake kit. Also, the same sort of things happen with the caliper brackets on just about ANY aftermarket BBK. They're almost all anodized aluminum.

Q: Are your big brake kits road legal?
A: All of the brake kit Essex sells are designed for off-road use only. If you read the fine print on any aftermarket big brake kit, from any manufacturer, you'll find the same thing...for off-road use only. We don't design our brake kits to meet any government standards, as there is no such standard or requirement in the USA for brake kits. There are however some regulations on brake hoses/lines and brake fluid. All stainless steel brake hoses and brake fluid that Essex sells are DOT compliant. Please read below and click the link for more details and info.

There are several federal organizations involved with the regulation of vehicle parts in the USA, but the two most relevant to the products we sell are the Department of Transportation (DOT) and the National Highway and Transportation Safety Administration (NHTSA).

NHTSA is the U.S. government agency responsible for implementing and enforcing the National Traffic and Motor Vehicle Safety Act of 1966, as amended, 49 U.S.C. Chapter 301 (the Vehicle Safety Act),and certain other laws relating to motor vehicle safety. Under that authority, NHTSA issues and enforces federal motor vehicle safety standards (FMVSS) that establish minimum safety performance requirements for motor vehicles and for 13 items of motor vehicle equipment(i.e., “regulated motor vehicle parts”). Regulated motor vehicle parts include tires, rims, brake hoses, brake fluid, seat belt assemblies, lighting equipment, glazing, motorcycle helmets, child restraints, compressed natural gas containers, rear impact guards for trailers, platform lift systems for the mobility-impaired, and triangular reflective warning devices.

To be lawfully imported, a new or used regulated motor vehicle part must, as originally manufactured, conform to the version of the applicable FMVSS in effect on the date of manufacture and be so certified by its manufacturer. In most instances, certification of compliance with the applicable FMVSS for regulated motor vehicle parts is shown by the symbol “DOT” either inscribed on the part in a prescribed location, or placed on the outside of the container in which the part is shipped. The full text of each FMVSS for motor vehicles and motor vehicle equipment appears in49 CFR 571.Most of the standards listed below are vehicle standards. Compliance with a vehicle standard is certified by the vehicle manufacturer and not by the manufacturer of the vehicle system or component that is addressed by the standard. Some of the standards establish minimum safety performance requirements for motor vehicle equipment. Those standards are marked in the list below with an asterisk(*). The manufacturer of equipment that is subject to a standard must certify the equipment’s compliance with the standard.

You can see full details here: http://gsi.nist.gov/global/docs/motor_vehicle_part...

Can the manufacturer of my car deny a warranty claim because your brakes are on it?

The information below is provided by SEMA, and can be found on their website (www.sema.org) under “Federal Warranty Laws.” You can also Google “The Magnuson-Moss Warranty Act (15 U.S.C. 2302(C).”

The Magnuson-Moss Warranty Act is a federal law that regulates warranties to protect consumers. It essentially states that the use of an aftermarket part alone is not cause for denying the warranty. However, the law's protection does not extend to aftermarket parts in situations where such parts actually caused the damage being claimed under the warranty. Additionally, consumers are advised to be aware of any specific terms or conditions stated in the warranty, which may result in its being voided. The law states in the relevant section:

“No warrantor of a consumer product may condition his written or implied warranty of such product on the consumers using, in connection with such product, any article or service (other than article or service provided without charge under the terms of the warranty) which is identified by brand, trade or corporate name....” (15 U.S.C. 2302(C)).

Q: Do your brake kits come with a warranty?

A: No. The disclaimer of warranty below appears on the first page of the install manual inside the box of every Essex Designed Competition Kit. That said, if you order a big brake kit and there is something blatantly wrong when you open the box (the wrong caliper is inside, etc.), we will do everything in our power to correct the situation immediately. We have stringent quality controls in place to prevent such a situation from occurring, and in all cases, multiple employees handle and check our products for issues before they go out the door.

Disclaimer of Warranty

By purchasing this product and opening this box, purchaser expressly acknowledges, understands and agrees that they take, select and purchase this brake system, parts, and equipment from Essex Parts Services, Inc., its affiliates, suppliers, distributors, and agents (collectively, “Essex”) “as is” and “with all faults.” The entire risk as to the quality and performance of this brake system, parts, or equipment is with the purchaser. Should the goods prove defective following their purchase, the purchaser assumes the entire cost for all necessary servicing or repair or any resulting liability. Essex is not responsible for any damage, consequential or otherwise, for equipment failure or mal-performance after installation. Essex makes no warranties whatsoever, expressed or implied, oral or written, to purchasers or any users of these products. Essex expressly disclaims any implied warranty of merchantability or warranty of fitness for a particular purpose, including fitness of these systems, parts or equipment for racing or road use. No warranty or representation is made to the product’s ability to protect the user from injury or death. The user assumes all risk. By purchasing this product and opening this box, purchaser expressly affirms that they are relying upon their own skill and judgment in selecting and purchasing these goods as suitable for purchasers’ intended use. Purchaser understands and agrees that no officer, director, salesman, distributor, or agent of Essex has any authority to make any statement contrary to the terms of this disclaimer and agreement. On the contrary, Essex disavows any statement contrary to what is written above.

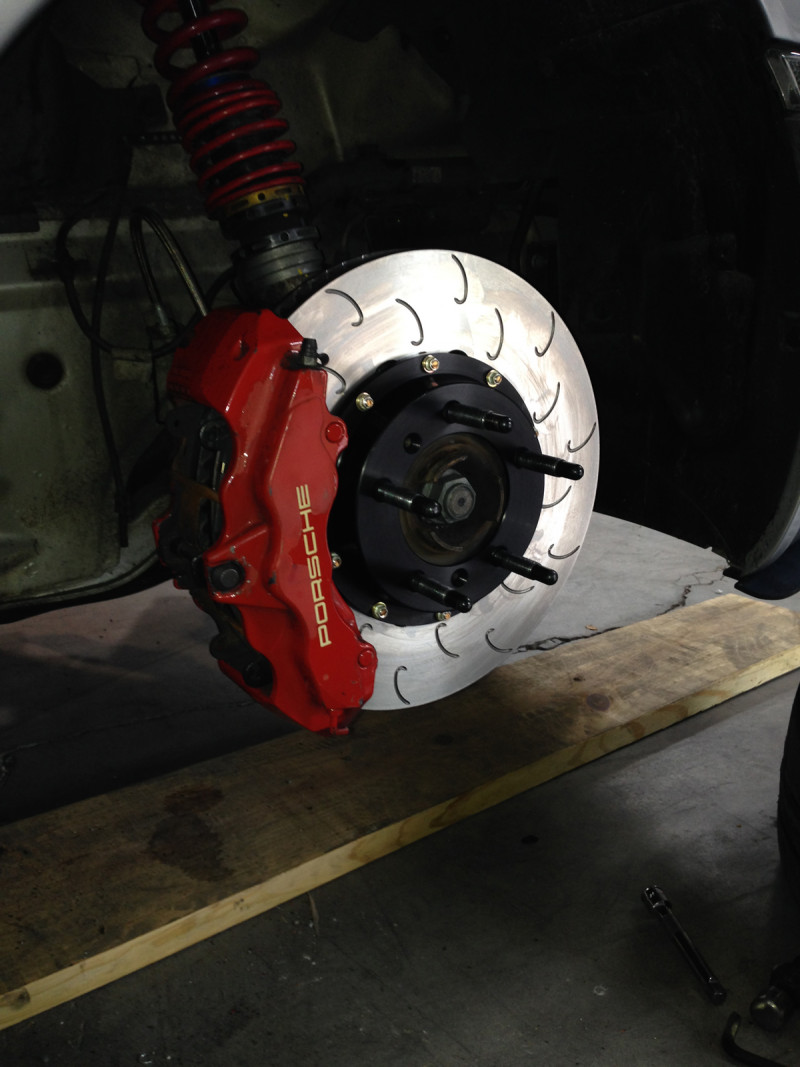

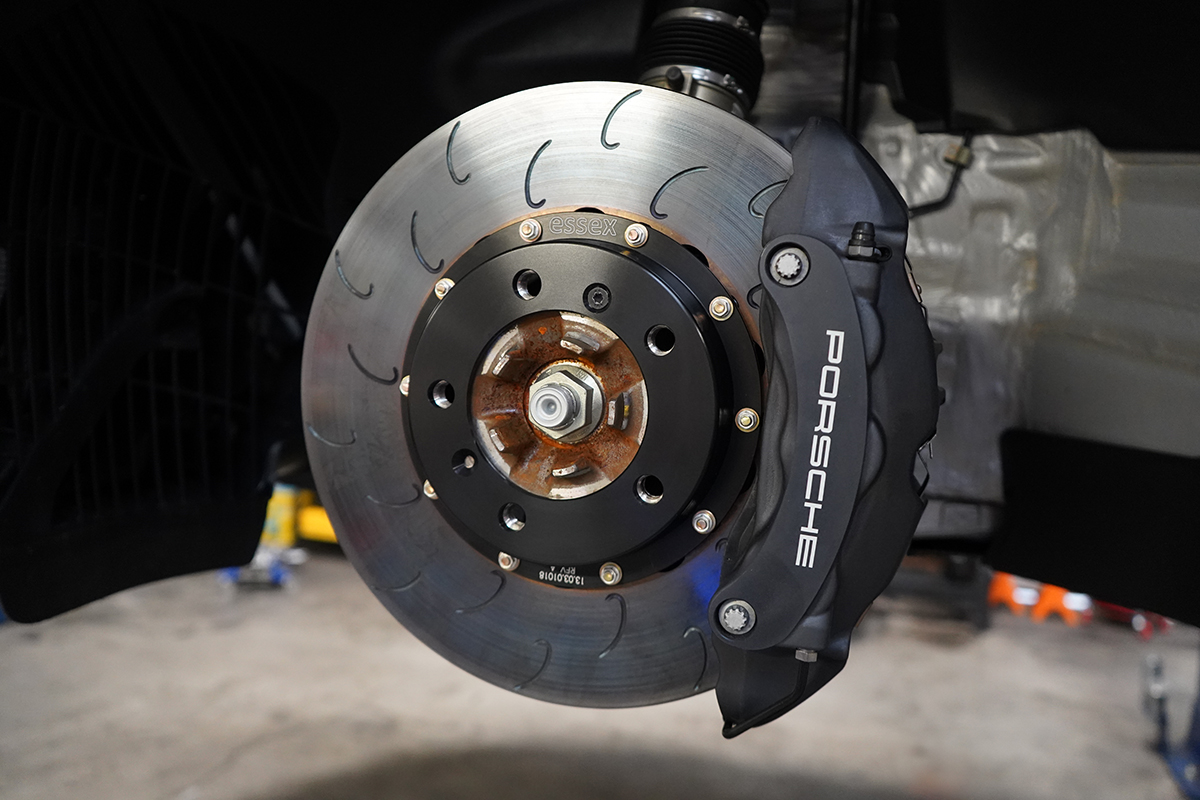

See these discs in action in our Customer Gallery.

To Top of Page
