Updated Product: Essex Caliper Spreader Tool V2

10.01.2025

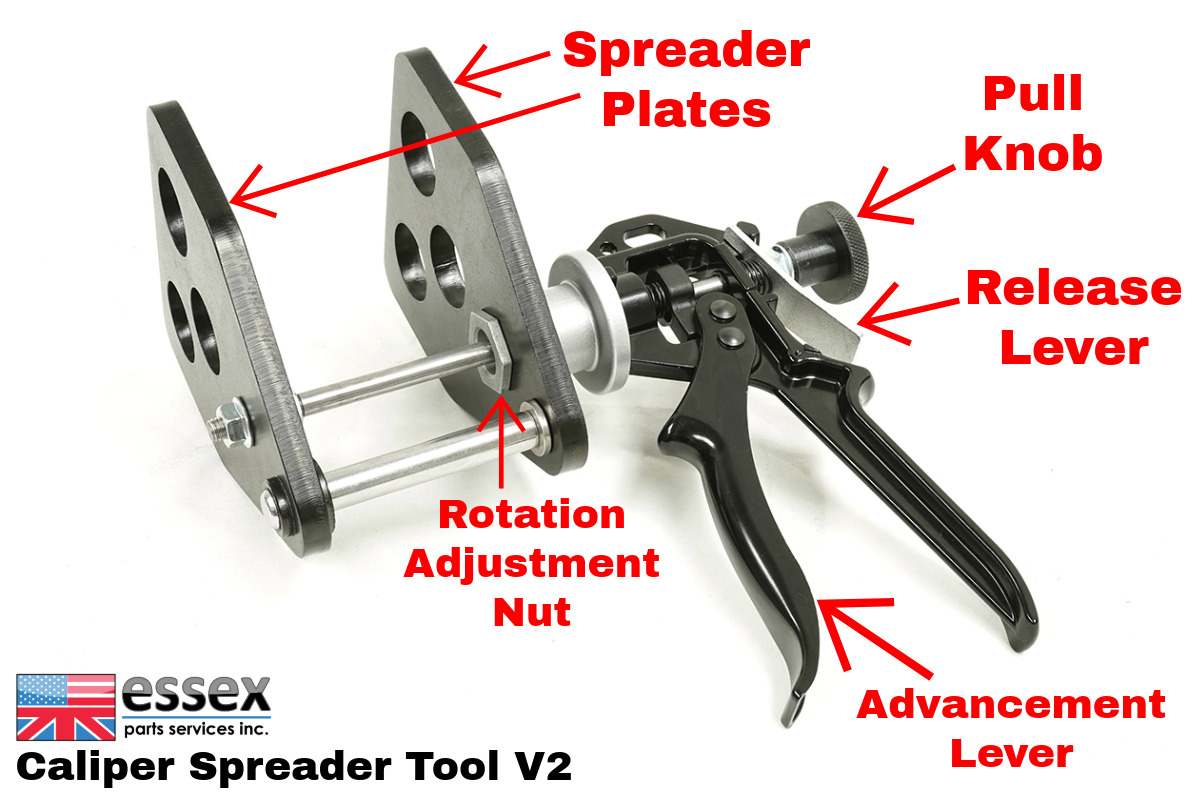

In our efforts to continuously improve, we went back to the drawing board with our Essex Caliper Spreader Tool, making some significant updates based on additional testing and customer feedback. Our latest V2 model features thicker steel end plates for a massive 225% increase in stiffness, minimizing deflection under load and increasing effectiveness. At 120mm wide, the revised plates offer ample coverage for large six piston calipers, yet still remain compact enough to fit inside common four piston calipers. With 90mm of depth, the plates are also tall enough to reach down into modern calipers with extra tall radial depths, which are becoming quite common on OE iron and carbon ceramic brakes. Maximum tool spread on this latest version is 94mm, allowing a wide range of travel and caliper/disc width applications. Lastly, improved adjustment allows 360 degree rotation of the plates, so you can get the perfect angle and maximum clearance for the tool.

We have confirmed fitment and functionality with the following calipers thus far, and we expect it will fit many more:

  • AP Racing Radi-CAL Competition Calipers- CP9668, CP9669, CP9660, CP9661, CP944X, CP945X
  • AP Racing Conventional Competition Calipers- CP8350, CP5060, CP5040
  • AP Racing Radi-CAL Road Calipers- CP956X, CP954X

For more information and instructions on use, please visit our Essex Caliper Spreader Tool V2 product page.
