New Products: 390mm and 378mm Radi-CAL Competition Brake Kits for C8 Corvette Z06

When it initially broke the long standing Corvette mold in 2020, the mid-engined C8 Stingray was already a rolling inflection point for the brand. However, with a even wilder exotic-inspired flat-plane crank V8, Chevy's latest Z06 throws yet another chapter of the old Vette rulebook right out the window. To help reign in all 670 horsepower from the 5.5L high-winding powerplant, we are thrilled to release our larger 390mm and 378mm Competition Brake Kit options!

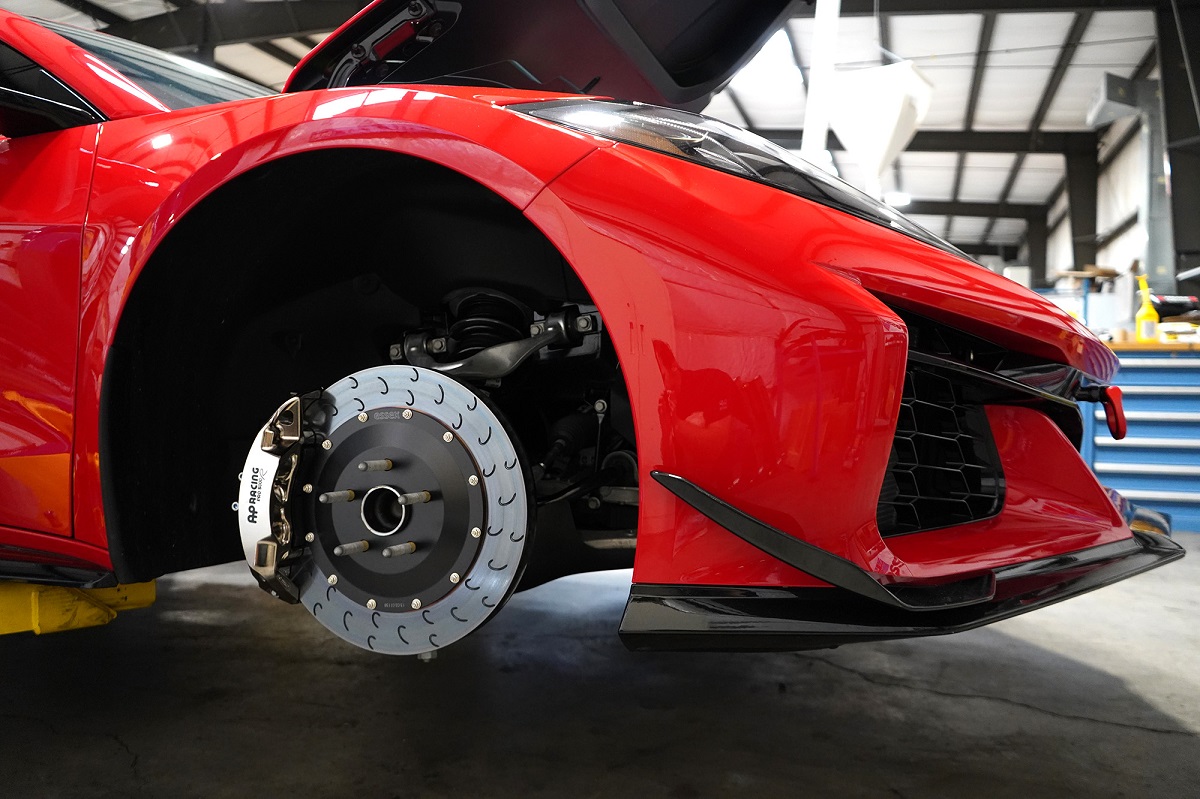

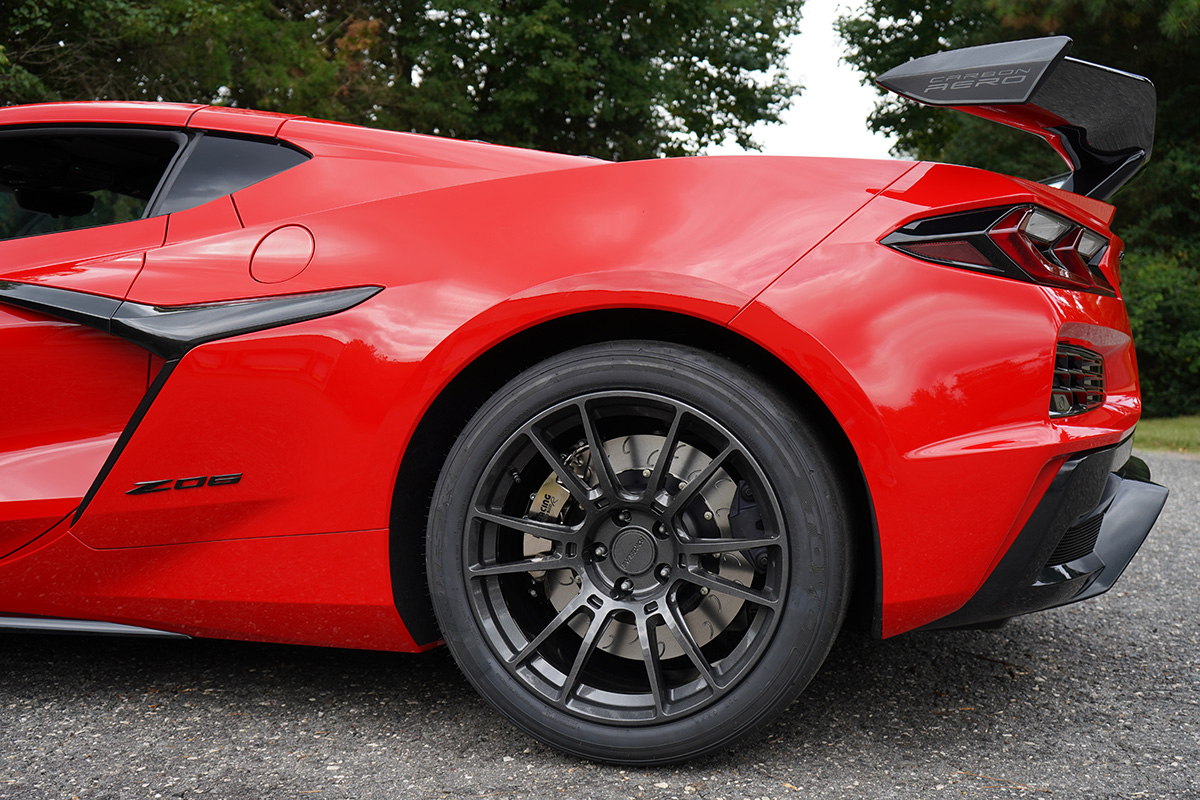

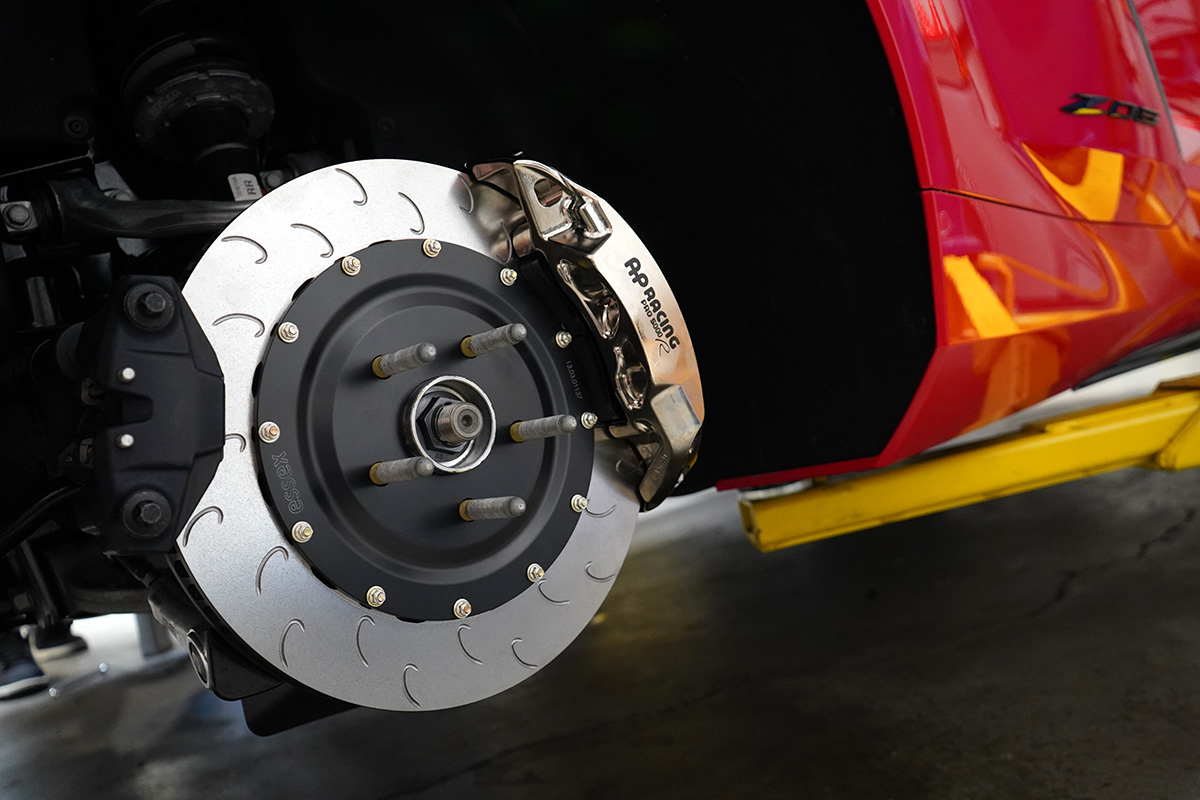

Enjoy some installed images of the largest available CP9668 front / CP9669 rear kits, along with full details outlined below.

Shop the full menu of AP Racing by Essex brake upgrades for the C8 Z06

Front Brake Kit Options (click each kit below for more info)

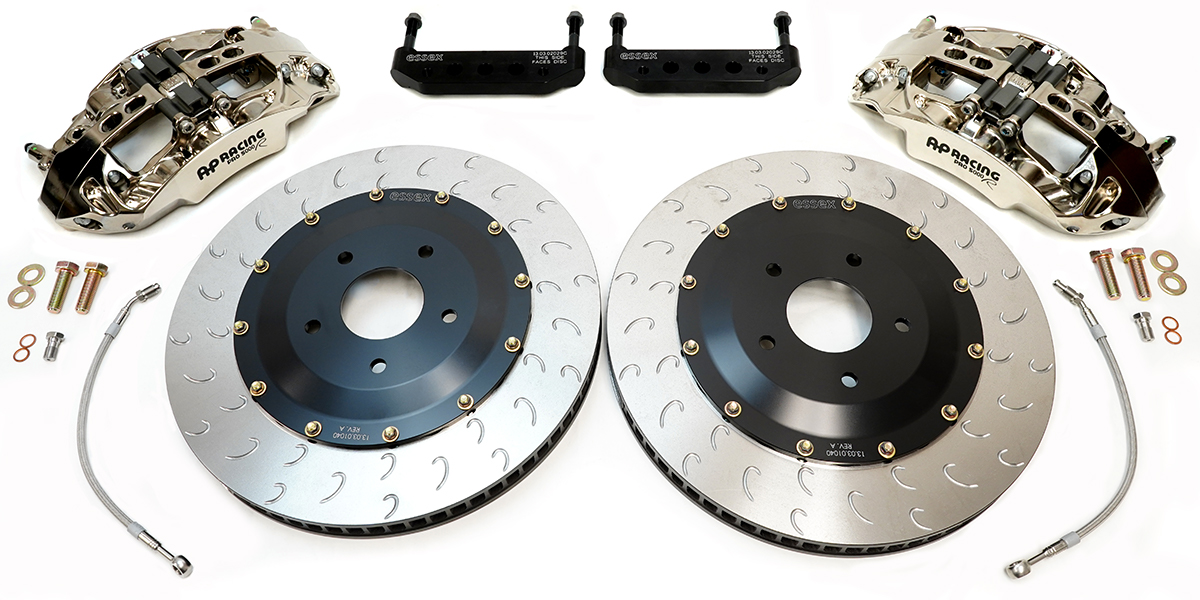

• CP9668/390mm ENP finish (Electroless Nickel Plated)
• CP9668/390mm Anodized finish

System Benefits

• Saves approximately 9 unsprung lbs. on front end vs. OEM Z06 Iron System

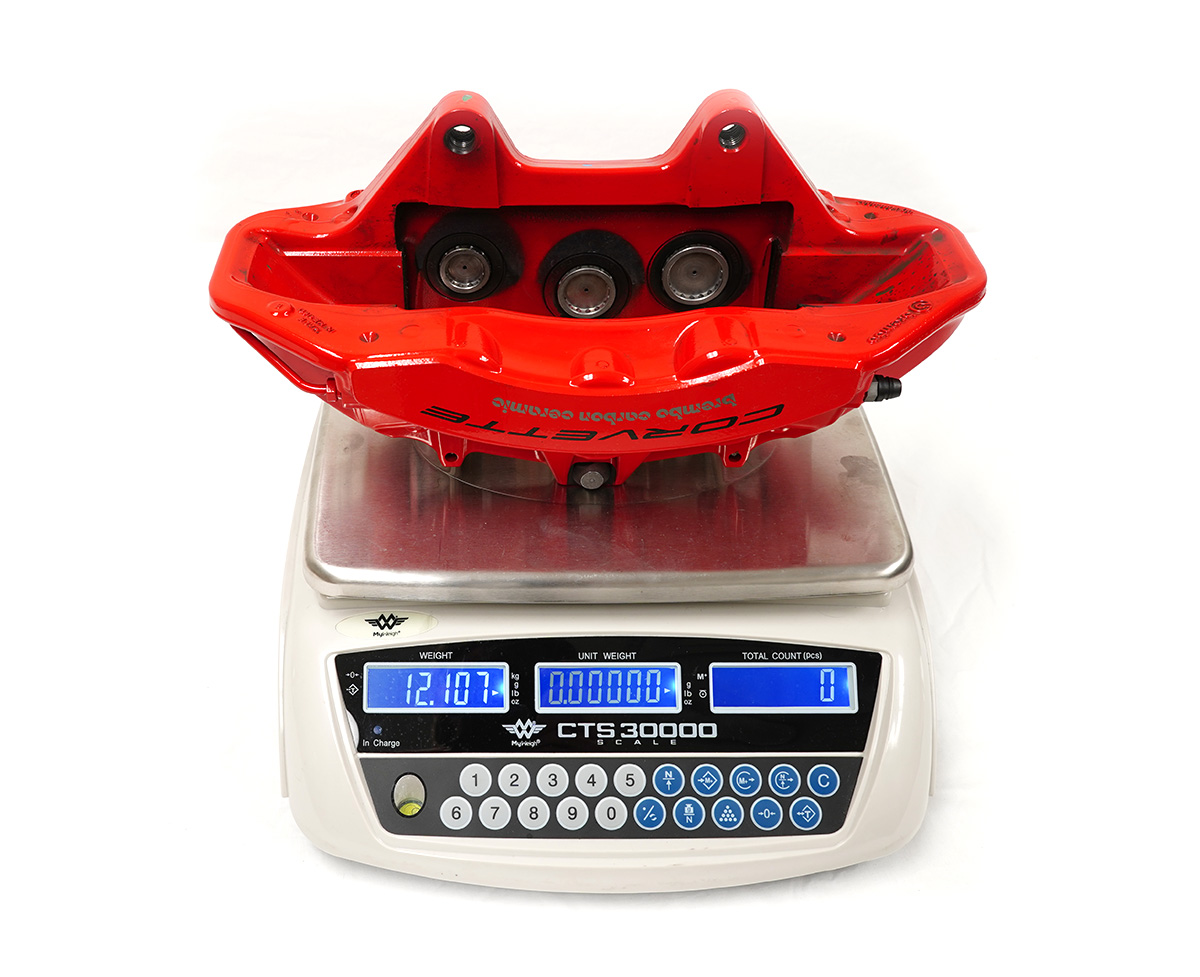

• Drastically reduced spares/running costs and minimal 6 lb. weight penalty vs. OEM Z07 Carbon Ceramic system
• Increased disc diameter to 390mm and thickness to 36mm without significantly increasing weight over our previous 372mm C8 systems
• Championship winning, 72 vane, fully floating, AP Racing J Hook racing discs with 12 attachment points to hat
• Disc metallurgy specifically designed to handle the temps typically seen on track offer a long service life
• Replacement iron disc rings available at an extremely competitive replacement price compared to OEM discs, especially carbon
• Available disc burnishing service ensures that your kit arrives ready to be installed and driven hard immediately
• Anti-knockback/anti-rattle disc attachment hardware

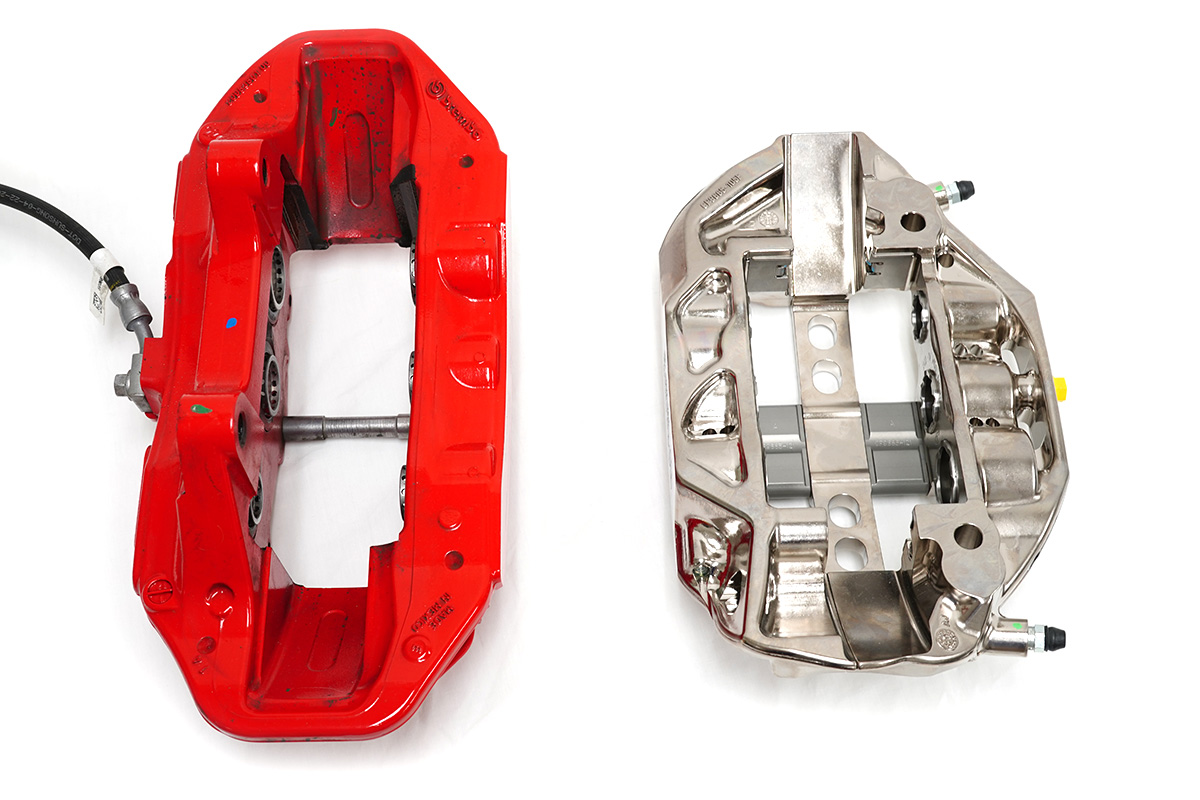

• 6-Piston AP Racing Radi-CAL calipers are the stiffest, lightest, and most technologically advanced calipers available at any price

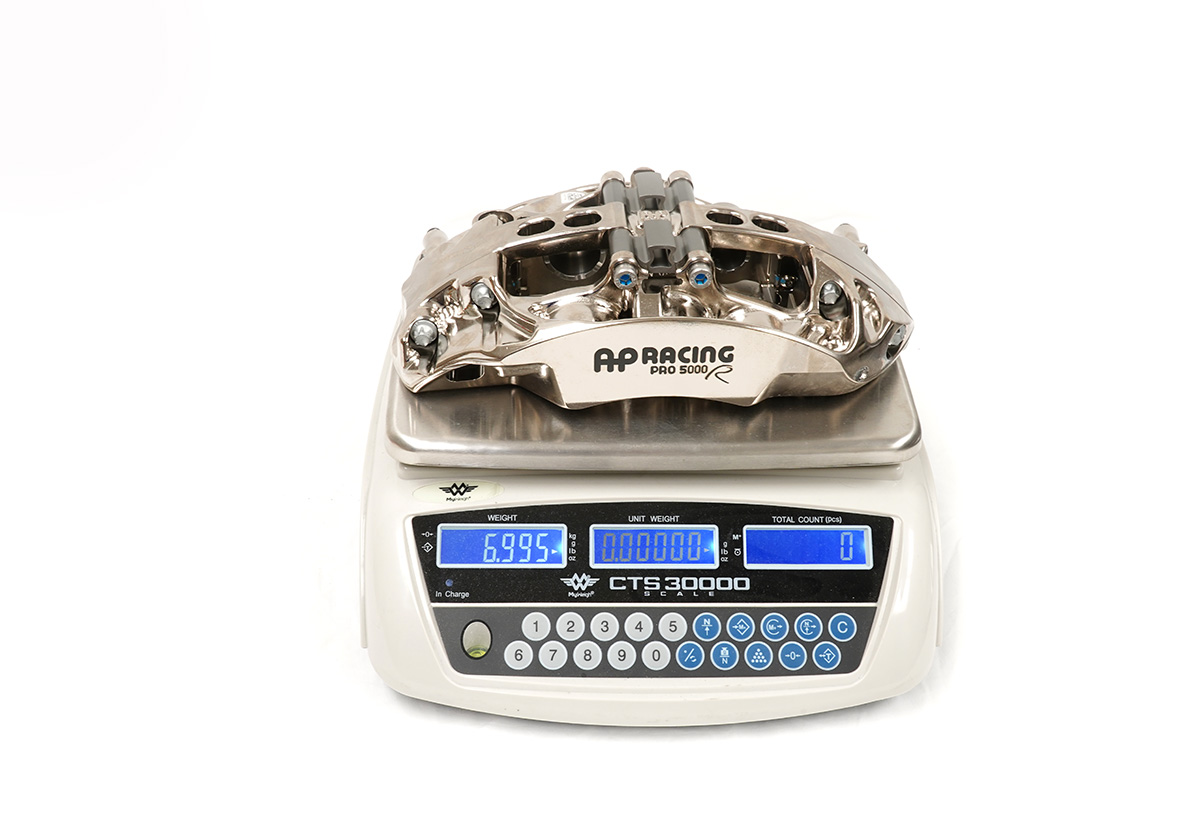

• Features AP Racing CP9668 Radi-CAL calipers with 25mm (1 inch) thick pads for extreme durability!
• Simple pad change with two bolts vs. the OEM spring clip that is retained by multiple pins which are tedious to align and secure
• Ventilated, domed back, stainless steel pistons keep heat out of the brake fluid and provide an ultra-firm pedal
• Mitigation of pad knockback via anti-knockback springs behind the caliper pistons
• Anodized or ENP (Electroless Nickel Plated) caliper finishes that are resistant to wear and deterioration at elevated temperatures
• Stainless steel caliper hardware for a long caliper service life under frequent pad change conditions
• High temperature, low drag seals that will hold up to track temps= less rebuilding and longer service life
• No dust boots to burn up
• Lifetime professional caliper rebuilding support by Essex (at a fee)- pull off your calipers, send them to us, we clean, inspect, and rebuild them
• Highest quality, Spiegler stainless steel brake lines with clear sheath that reduces compliance over OEM rubber design

Rear Brake Kit Options (click each kit below for more info)

• CP9669/378mm ENP finish (Electroless Nickel Plated)
• CP9661/378mm Anodized
• CP9661/378mm ENP finish

System Benefits

• Saves approximately approximately 10-12 unsprung lbs. on rear end (depending on caliper) vs. OEM Z06 Iron System

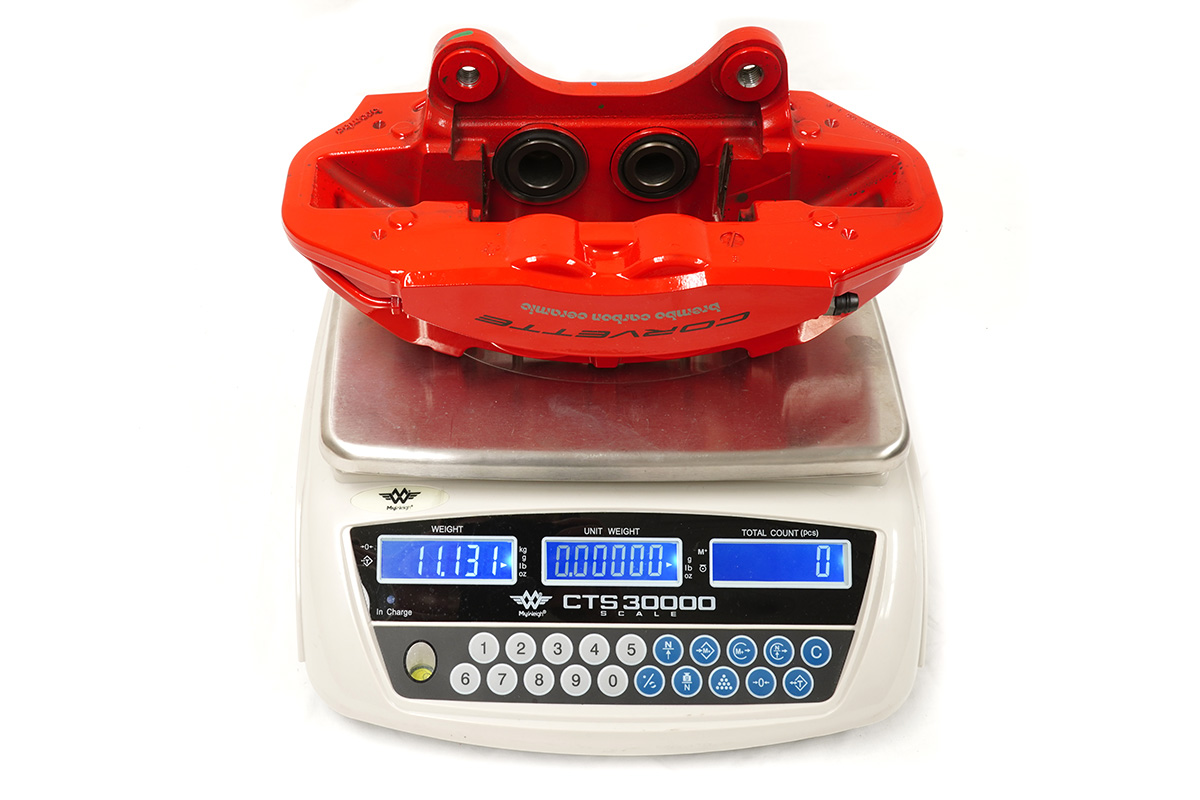

• Drastically reduced spares/running costs and minimal ~6 lb. weight penalty vs. OEM Z07 Carbon Ceramic system
• Increased disc diameter to 378mm and thickness to 34mm without significantly increasing weight over our previous 355mm C8 systems
• Championship winning, 72 vane, fully floating, AP Racing J Hook racing discs with 12 attachment points to hat
• 6-Piston AP Racing Radi-CAL calipers are the stiffest, lightest, and most technologically advanced calipers available at any price
• CP9669 Radi-CAL caliper option features 25mm (1 inch) thick pads for extreme durability!
• Disc metallurgy specifically designed to handle the temps typically seen on track offer a long service life
• Replacement iron disc rings available at an extremely competitive replacement price compared to OEM discs, especially carbon
• Available disc burnishing service ensures that your kit arrives ready to be installed and driven hard immediately
• Anti-knockback/anti-rattle disc attachment hardware
• Commonly available brake pad shapes with either 18mm thick (CP9661 caliper) or 25mm (1 inch) thick pads in the wider CP9669
• Simple pad change with two bolts vs. the OEM spring clip that is retained by multiple pins which are tedious to align and secure
• Ventilated, domed back, stainless steel pistons keep heat out of the brake fluid and provide an ultra-firm pedal
• Mitigation of pad knockback via anti-knockback springs behind the caliper pistons
• Anodized or ENP (Electroless Nickel Plated) caliper finishes that are resistant to wear and deterioration at elevated temperatures
• Stainless steel caliper hardware for a long caliper service life under frequent pad change conditions
• High temperature, low drag seals that will hold up to track temps= less rebuilding and longer service life
• No dust boots to burn up
• Highest quality, Spiegler stainless steel brake lines with clear sheath that reduces compliance over OEM rubber design
